Features
- 42 mm jaw opening
- DMM function
- Low battery indication
- Only figure ”1” for over range indication
- Negative polarity indication
| Function | Range | Accuracy |
| AC Current | 20/200A | ±(2.0% rdg + 5 dgts) |
| 1000A | ±(2.0% rdg + 7 dgts) | |
| AC Voltage | 750V | ±(1.0% rdg + 5 dgts) |
| DC Voltage | 1000V | ±(1.0% rdg + 2 dgts) |
| Input Impedance | 10MΩ (AC and DC Voltage) | |
| Resistance | 200/2000Ω | ±(1.0% rdg + 3 dgts) |
| Temperature | -40°C ~ 0°C | ±(1.0% rdg + 6 dgts) |
| 0°C ~ 400°C | ±(1.0% rdg + 3 dgts) | |
| 400°C ~ 750°C | ±(1.0% rdg + 5 dgts) | |
| Continuity | If continuity exists ≤ 30Ω, built in buzzer will sound. | |
| Display | 3½ digits, 1999 counts | |
| Battery | 9V | |
| Size / Weight | H250 x W99 x D43mm / Approx. 460g | |

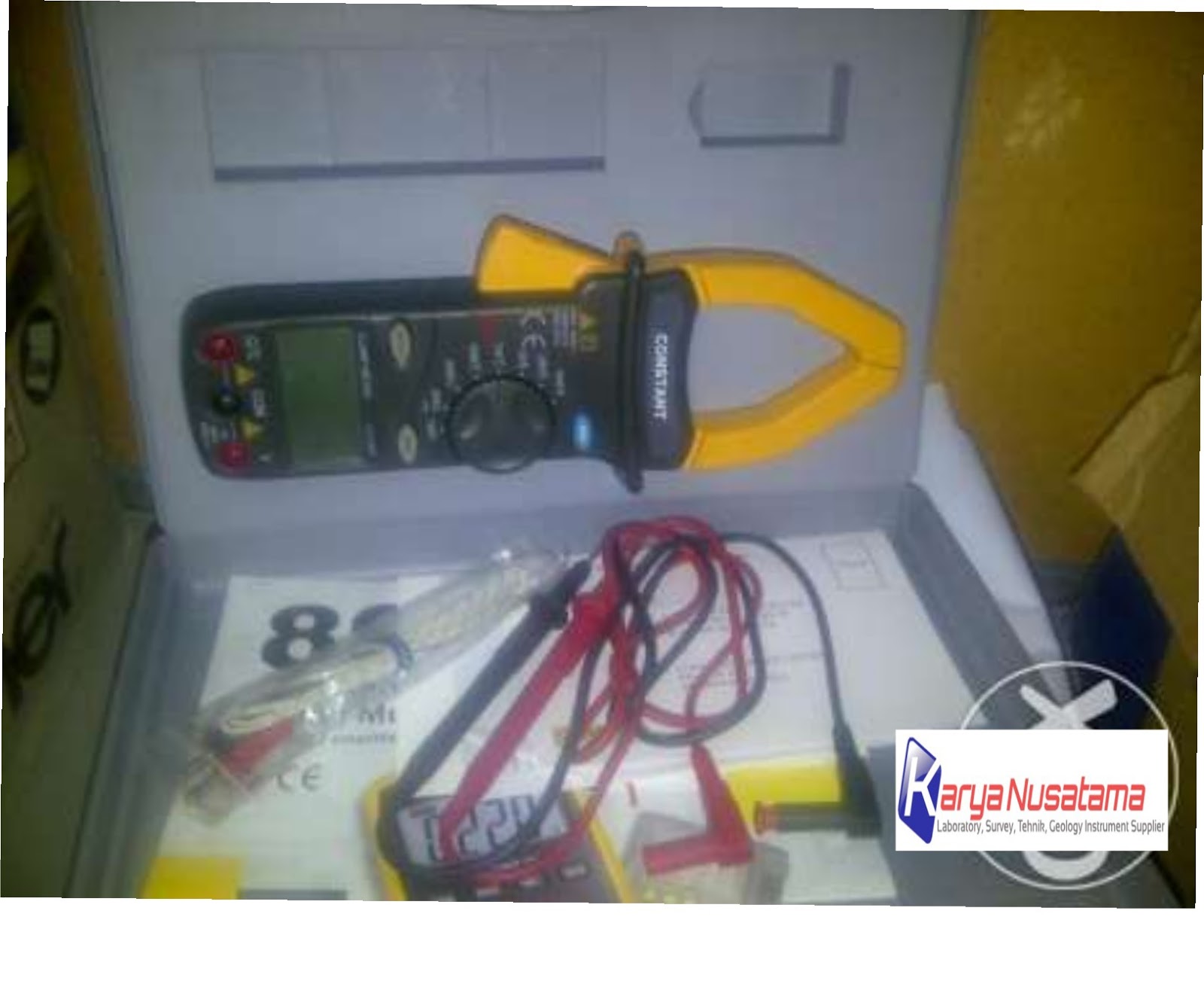

| Standard Accessories | Test Leads, “K” Type Bead Thermocouple, Hard Case, Battery, Manual | |
